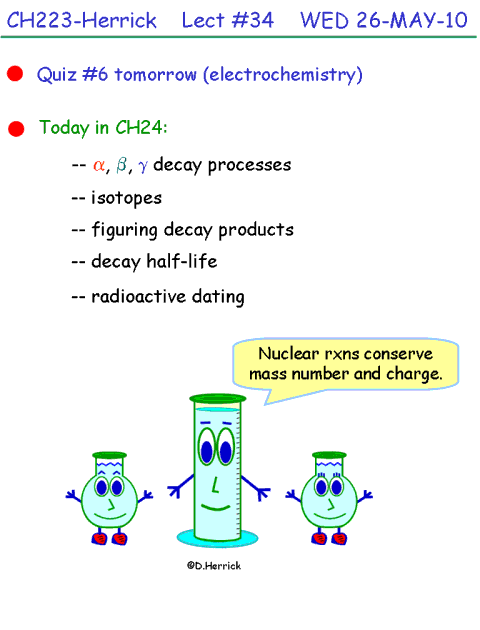

Lecture #34



1




2

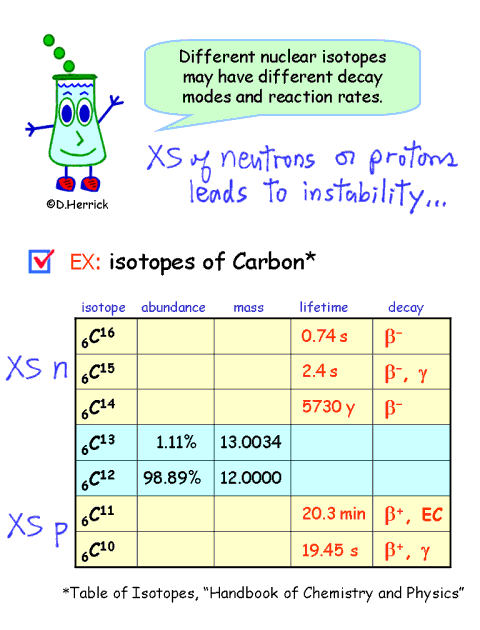

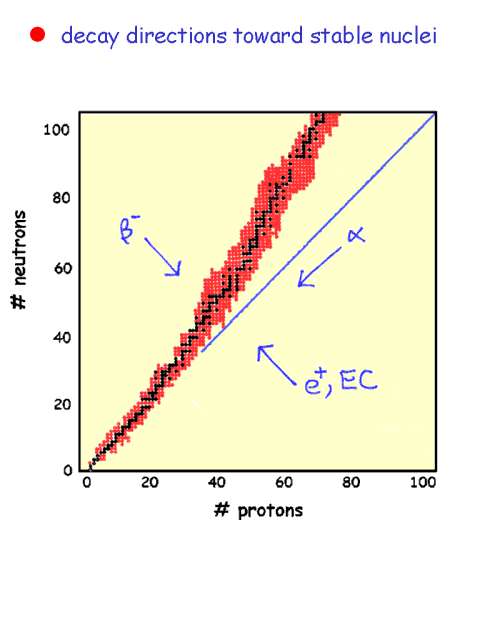

An excess of neutrons or protons here means an XS relative to the isotopes in the "belt of stability."



3




4




5




6




7




8




9




10




11




12





 Copyright D. Herrick
